Introduction
We are trying GitHub Enterprise, an enterprise version of GitHub.
GitHub Enterprise exists 2 versions: GitHub Enterprise Cloud (GHEC) and GitHub Enterprise Server (GHES). If you are a small or medium-sized organization, you can use GHEC, which is a hosted version of GitHub. If your source code is sensitive, you can use GHES, which is a self-hosted version of GitHub.
In this post, we will try GHES, which is a self-hosted version of GitHub.
Setup VM
Hardware Requirements
Below is the hardware requirements for GHES. (taken from official documentation)
| User licenses | x86-64 vCPUs | Memory | Root storage | Attached (data) storage |
|---|
| Trial, demo, or 10 light users | 4 | 32 GB | 200 GB | 150 GB |
| 10 to 3,000 | 8 | 48 GB | 200 GB | 300 GB |
| 3,000 to 5000 | 12 | 64 GB | 200 GB | 500 GB |
| 5,000 to 8000 | 16 | 96 GB | 200 GB | 750 GB |
| 8,000 to 10,000+ | 20 | 160 GB | 200 GB | 1000 GB |
If you need to enable GitHub Actions, you will need to add more CPU and memory.
Setup VM
GitHub Enterpsie Server is shipped as a Virtual Appliance (OVA) file. You can download it from the official website.
Attach the downloaded OVA file to a virtual machine software (e.g. VMware Workstation, VirtualBox).

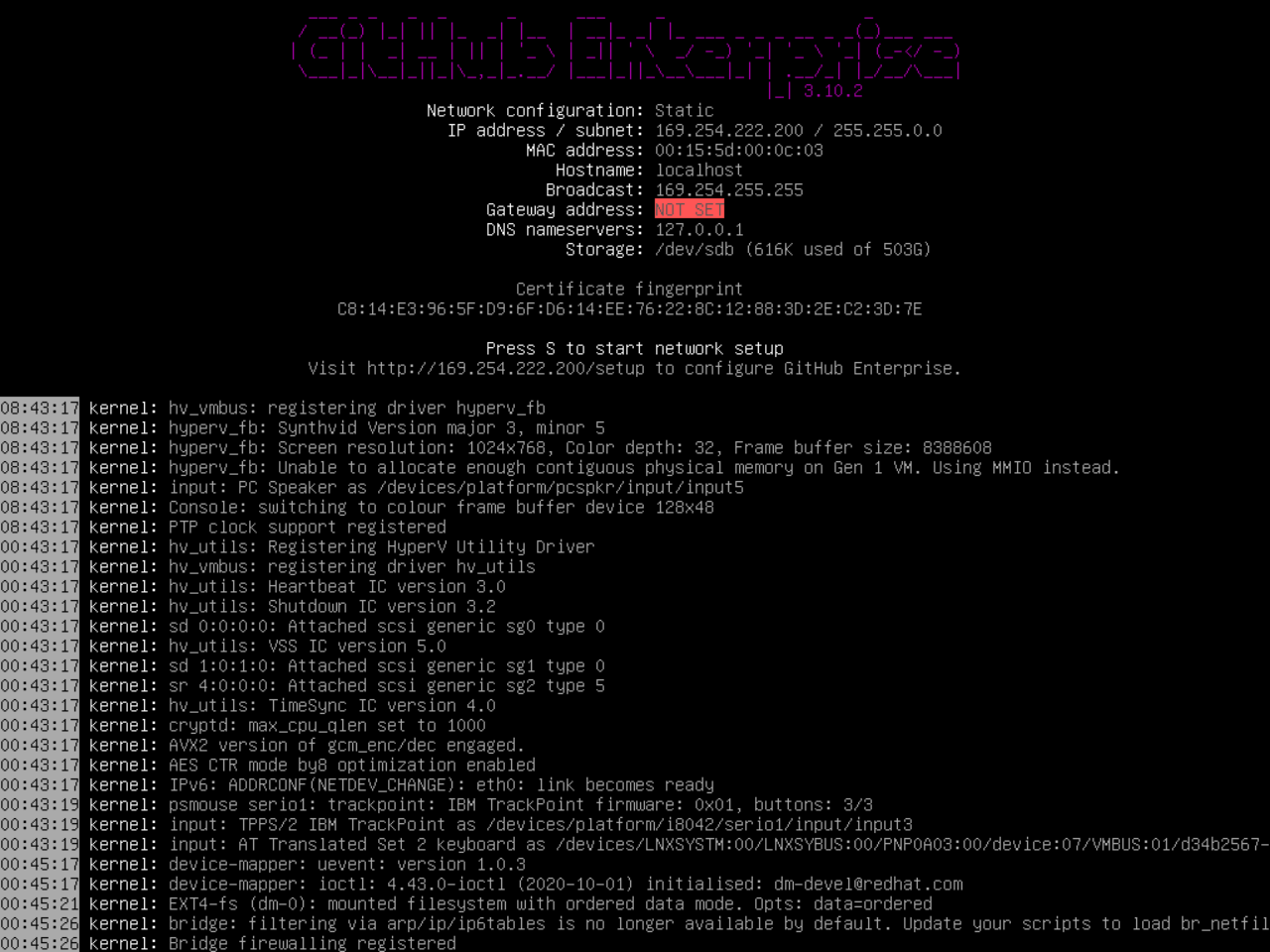

Start the VM!
Note: the setup address shown in the screenshot is misleading, more on that later.

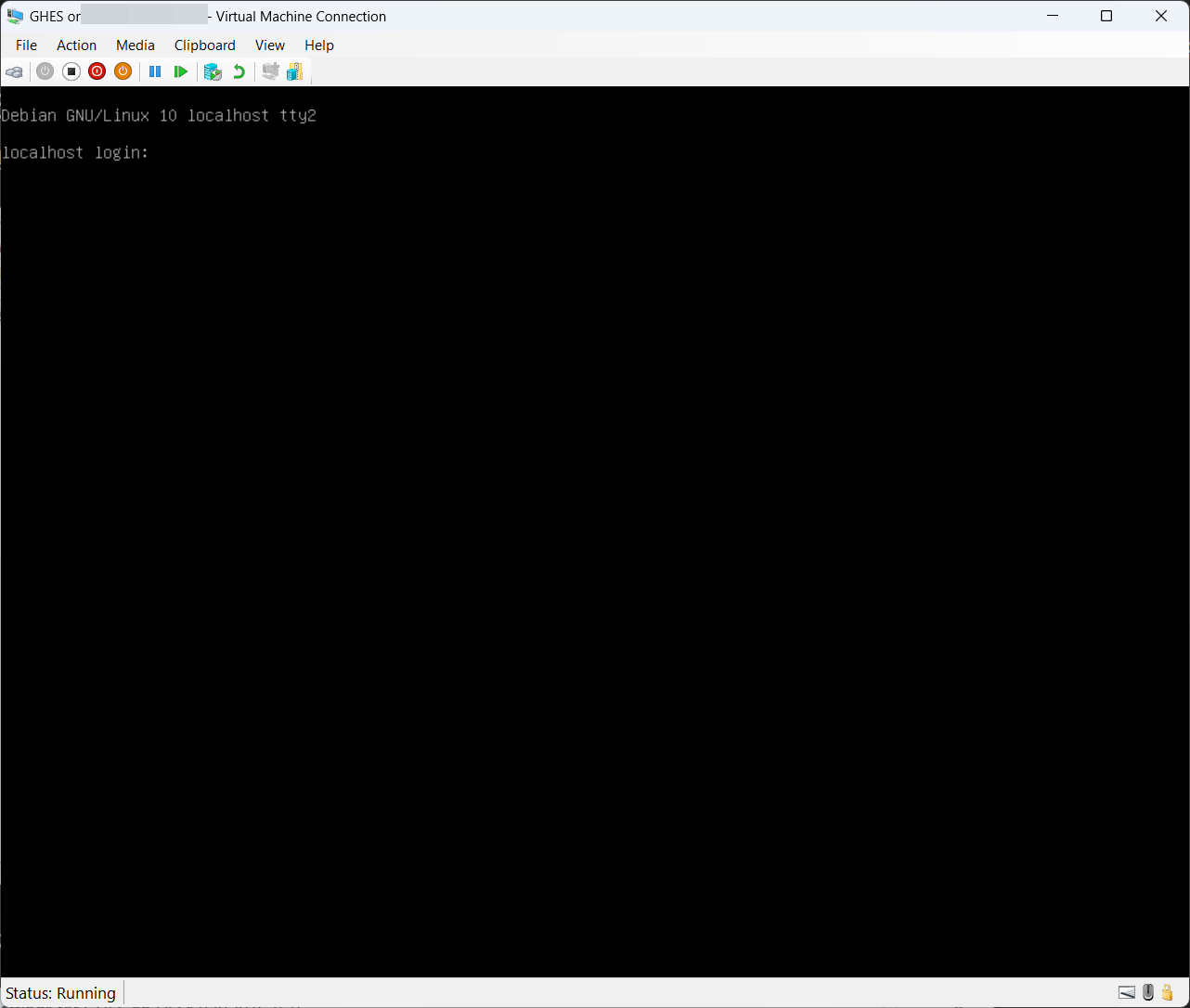

Swtich to other tty, you can see the word “Debian”.
Setup GHES
Let’s connect to the GHES instance by accessing it via a web browser. The url in my case is https://169.254.222.200/setup (notice it’s “https”, not “http”)

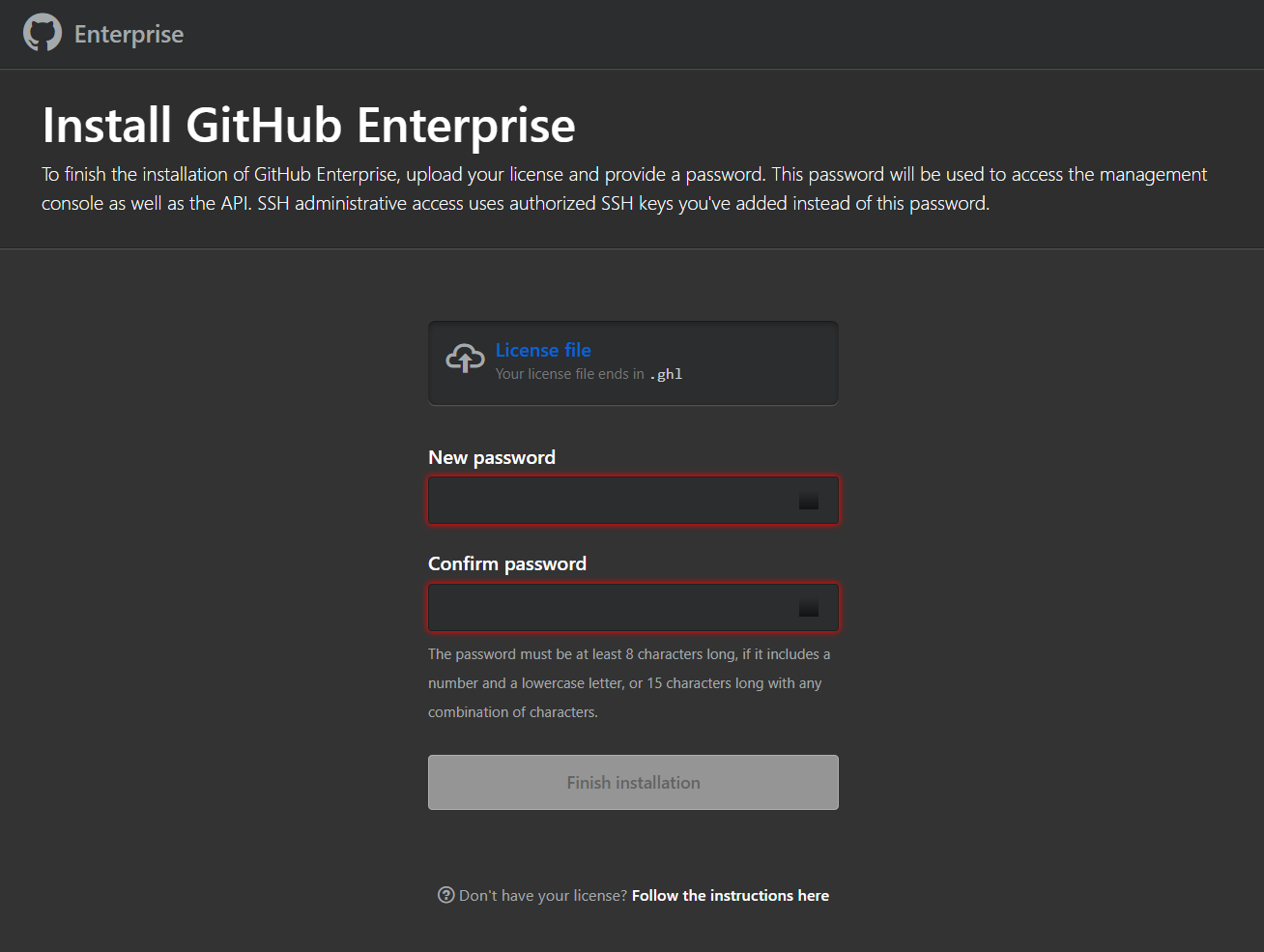

The first thing do to is upload a license file.

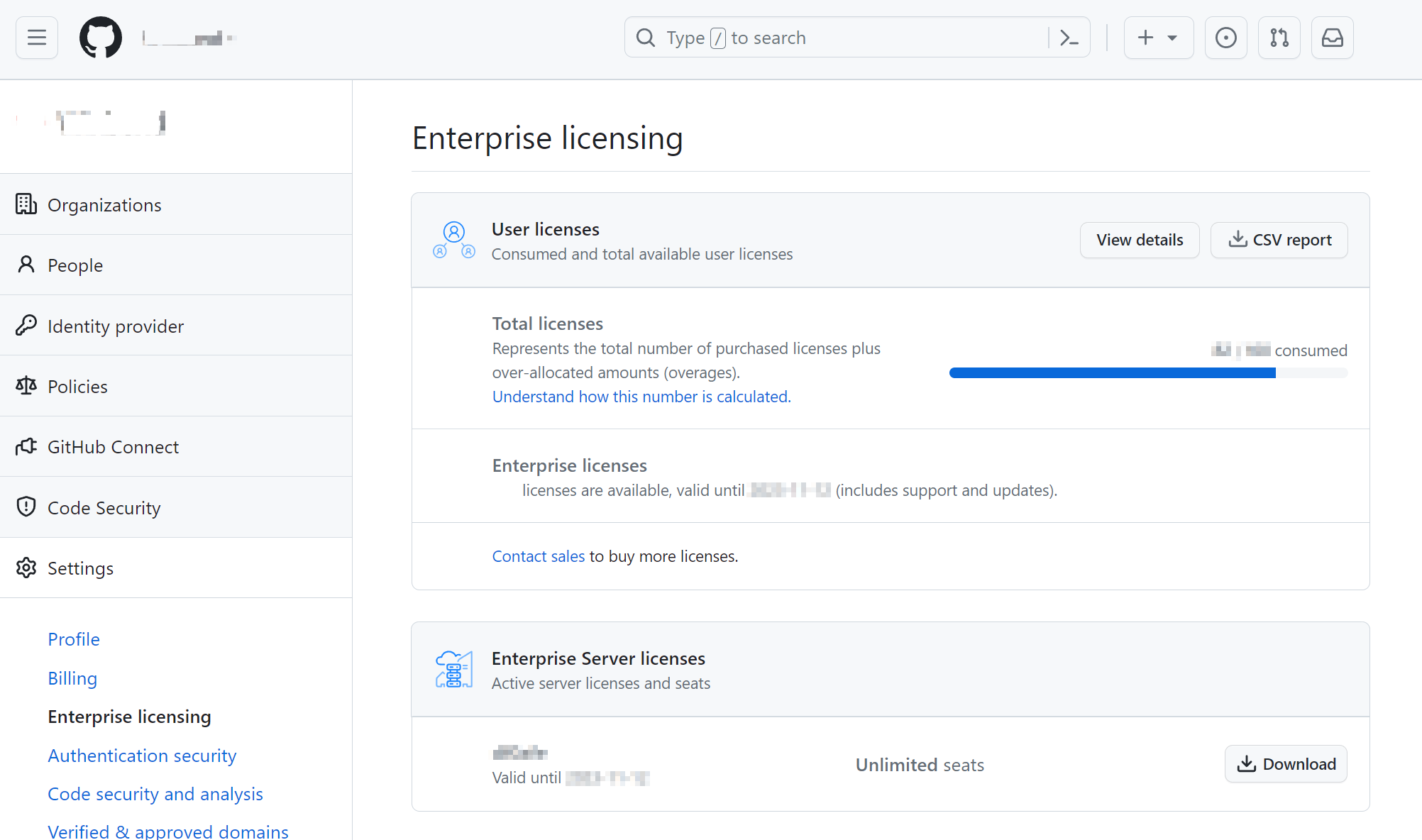

we can get license file from GHEC Settings (you can contact with GitHub’s sales team for trial license)
upload it, set a password ‘I chose Thread-Lapped-Sleet6’, we made to next step!

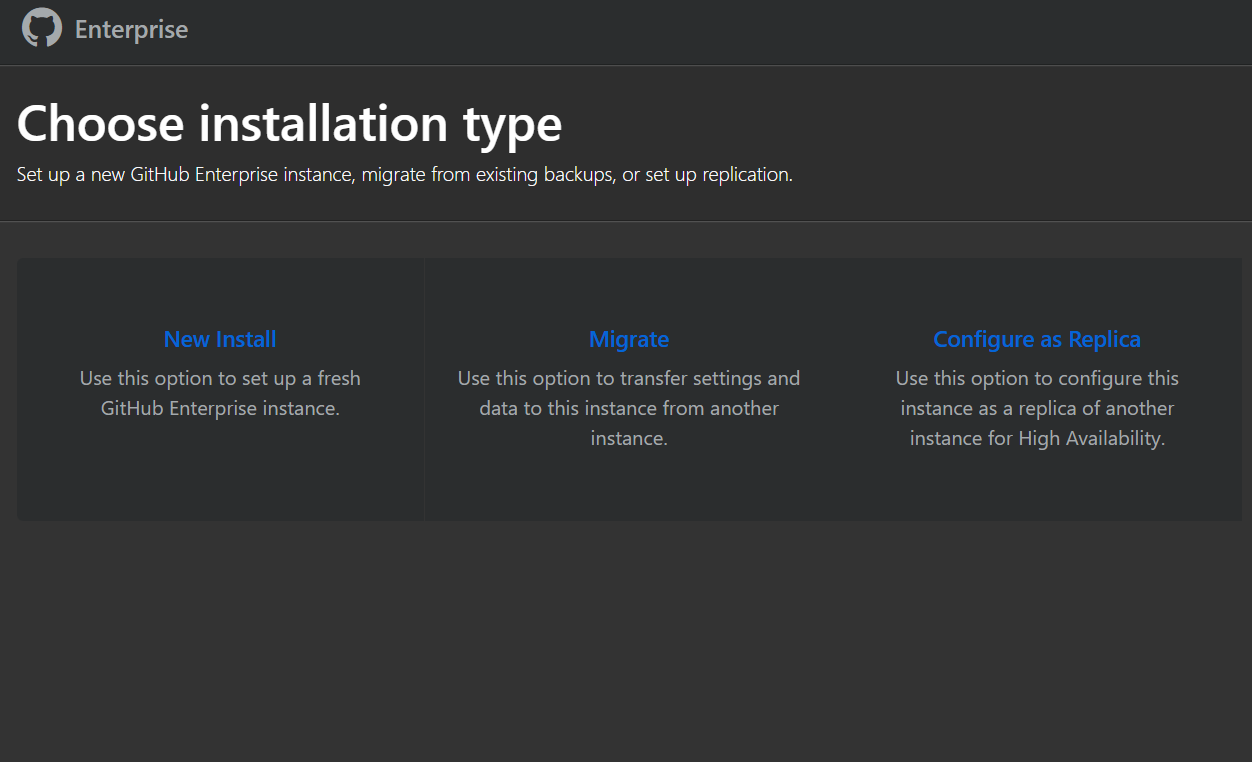

Select “New Install”

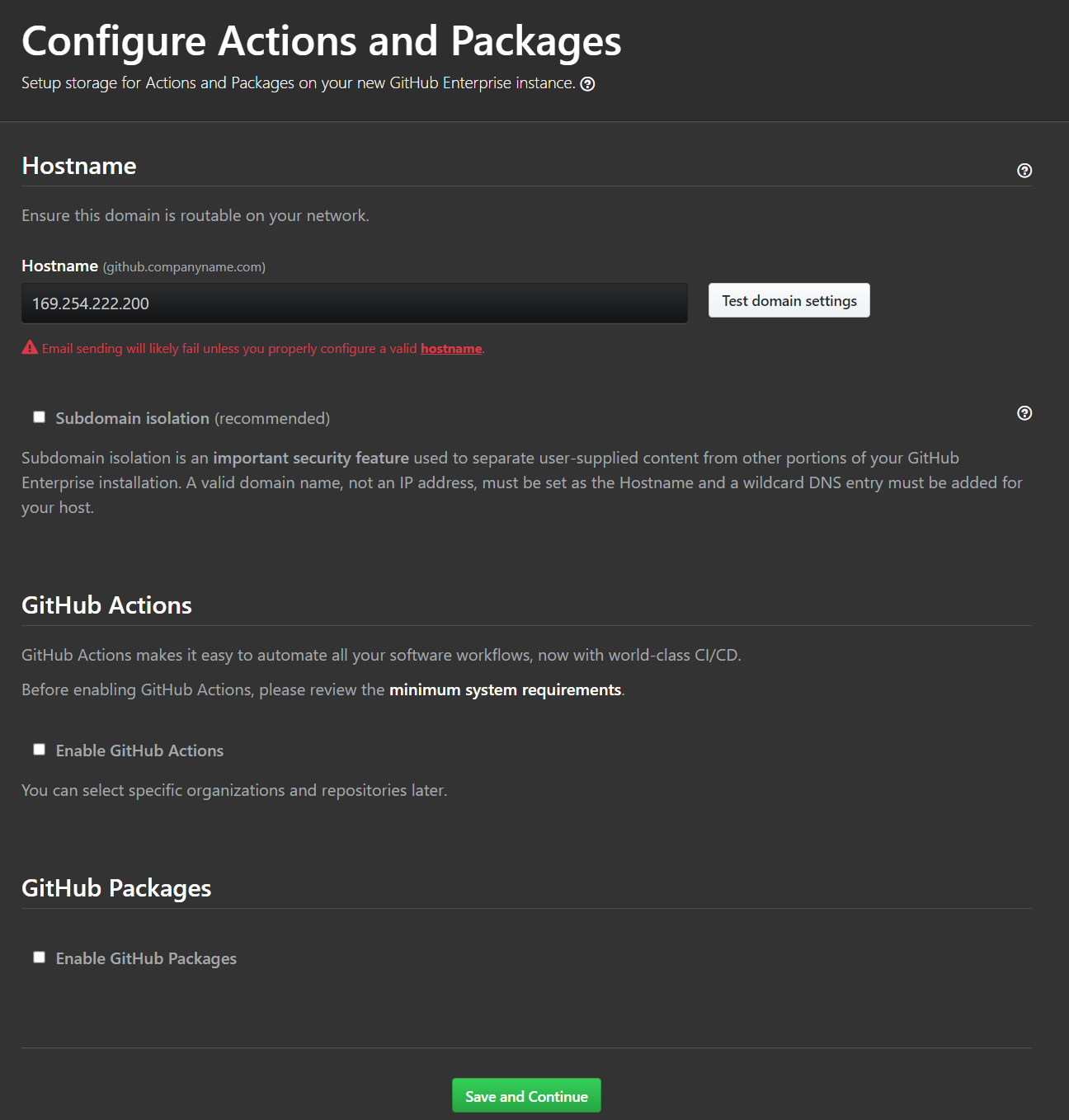

no hostname, well, probably an issue
no other features required at the moment, select “Save and Continue”
Then a long list of settings, I skipped them for the moment (except SSH key)

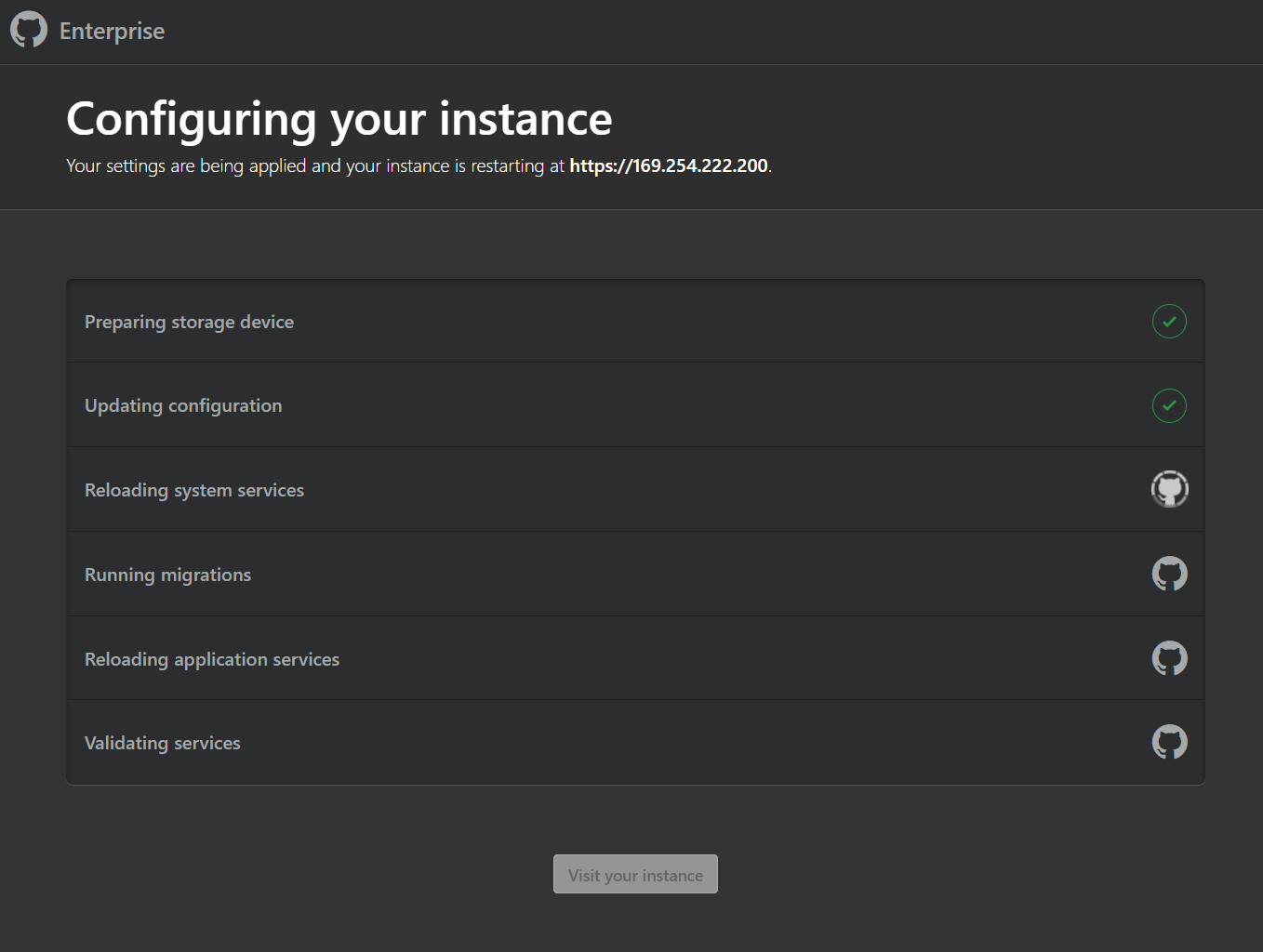

Starting setup…

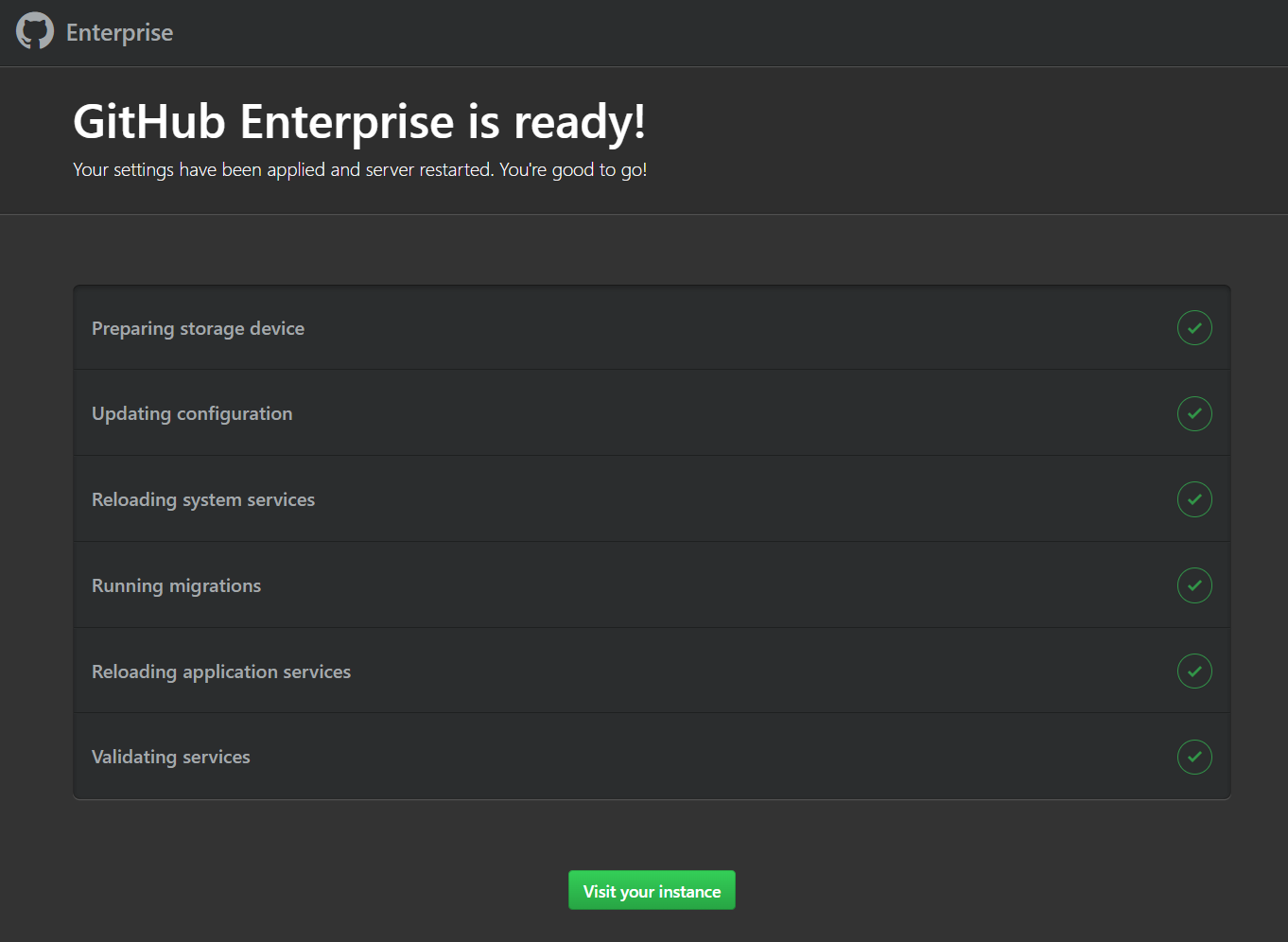

wait for about 15 minutes, all done. Click “Visit you instance”

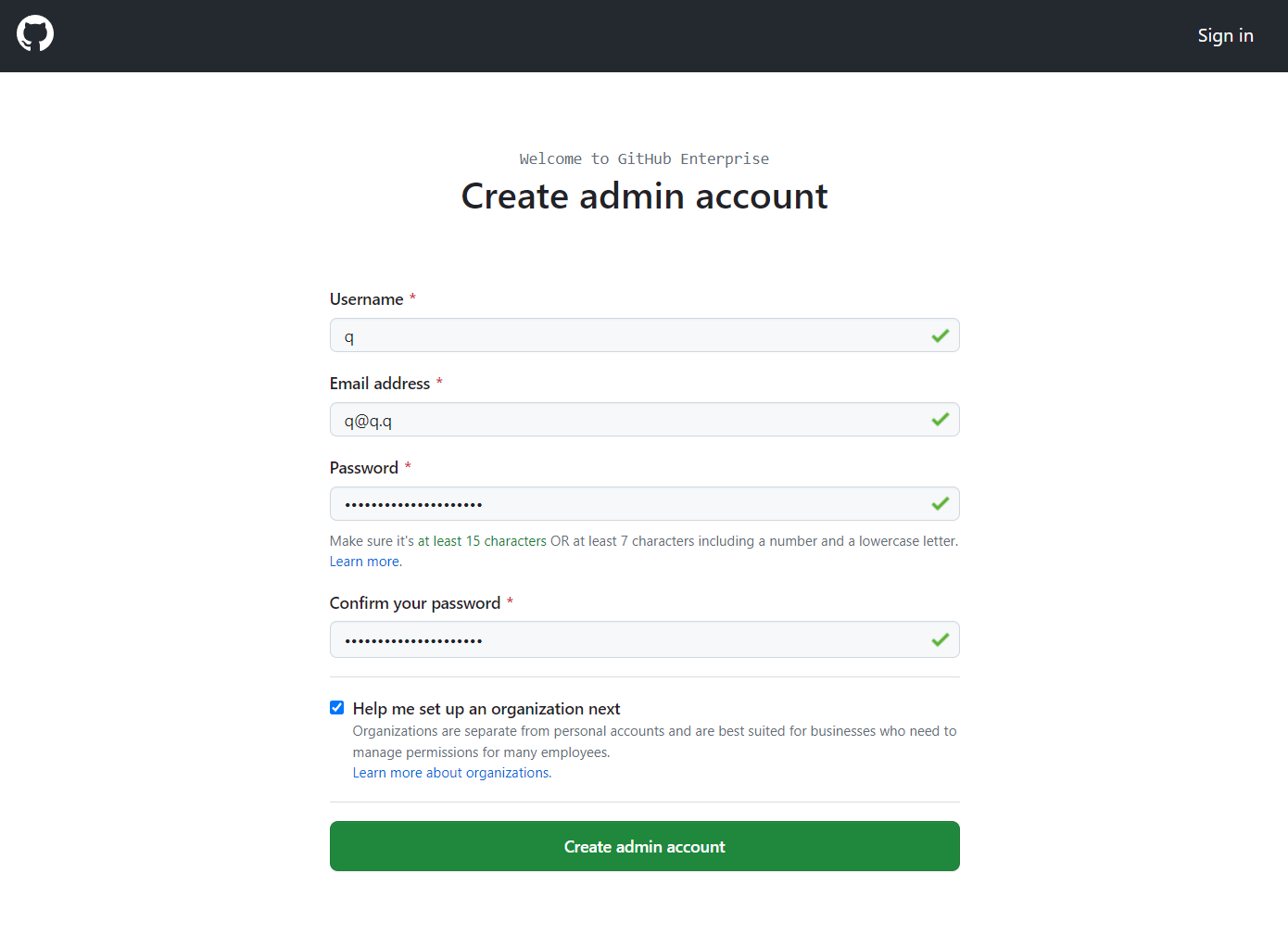

first set a admin account, check “Help me set up an organization next”

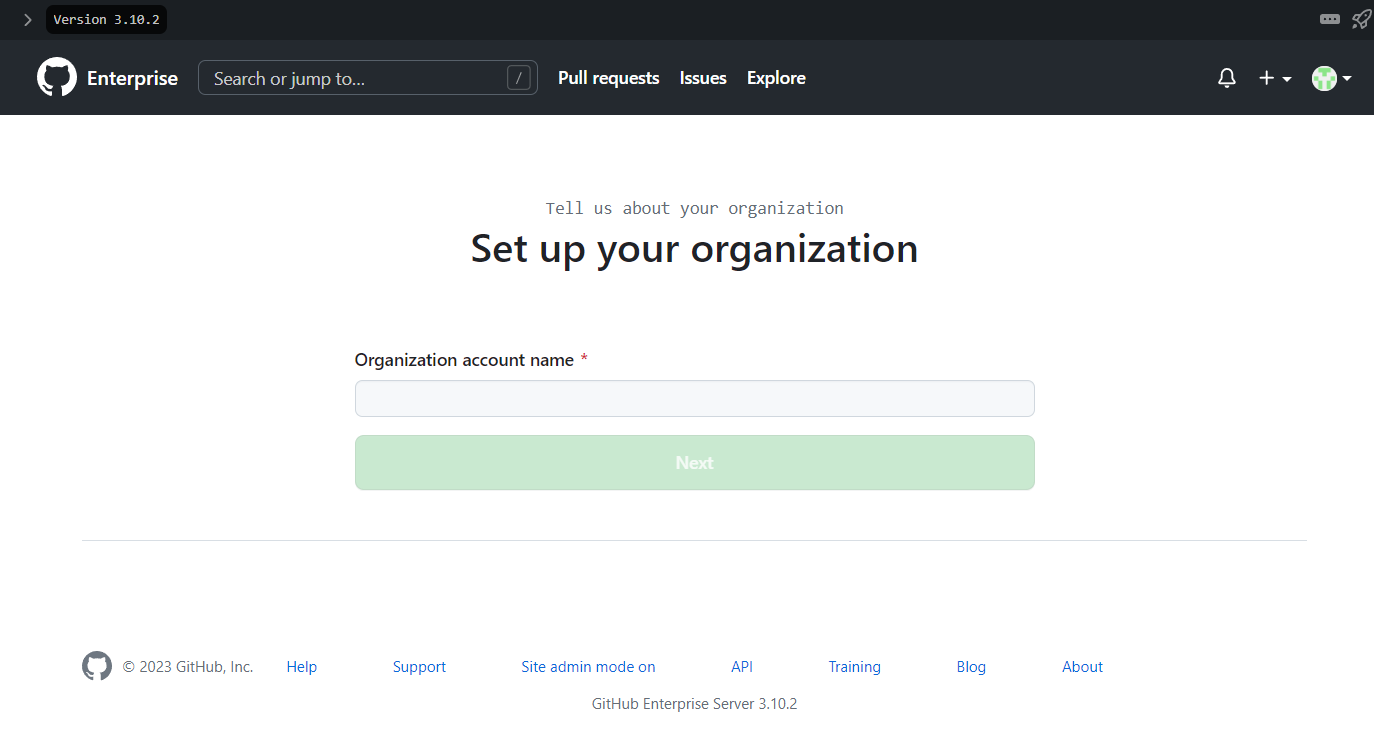

Next is to set up an organization
OK GHES setup is done!.

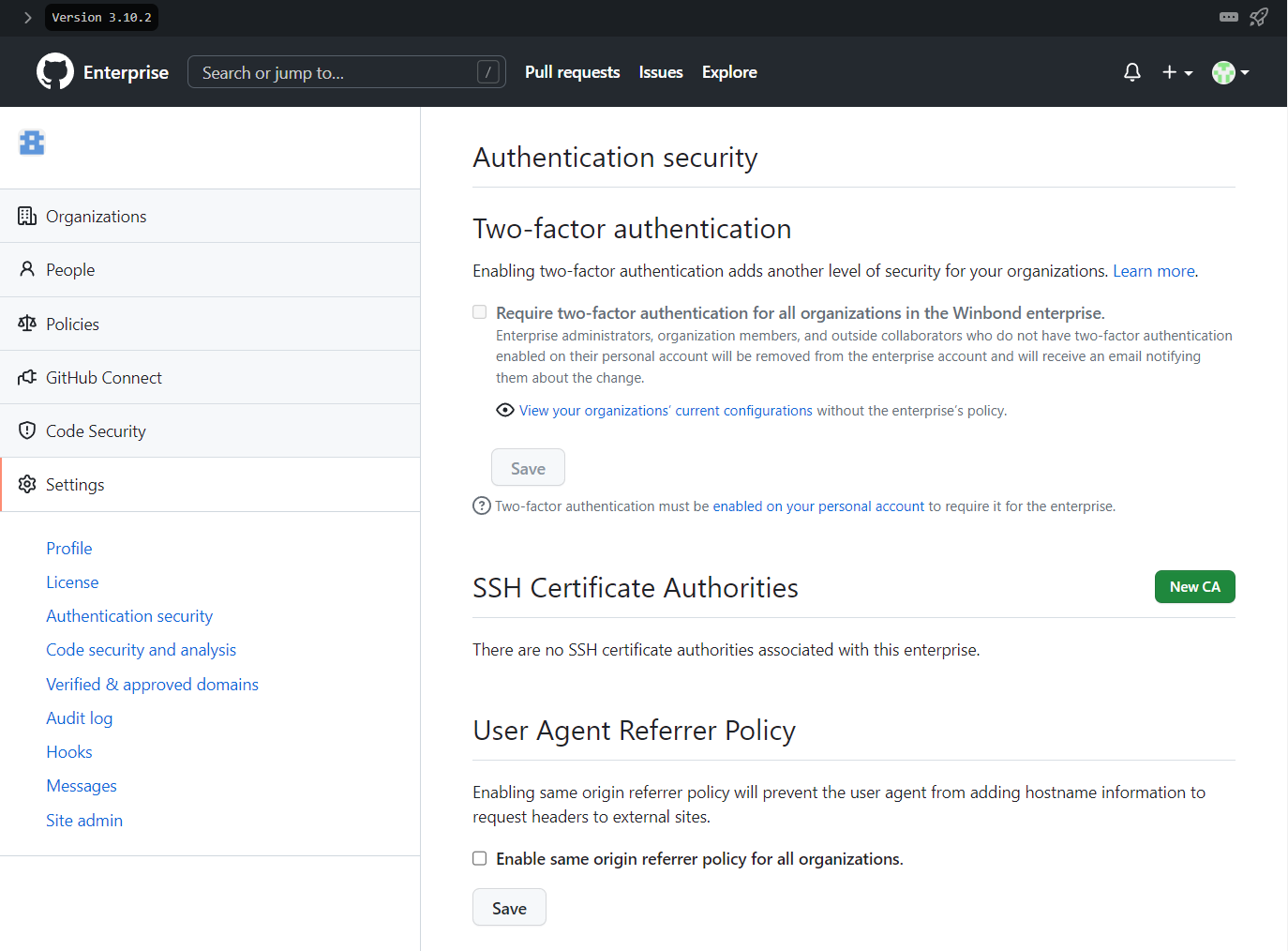

Below are some screenshots of admin section:

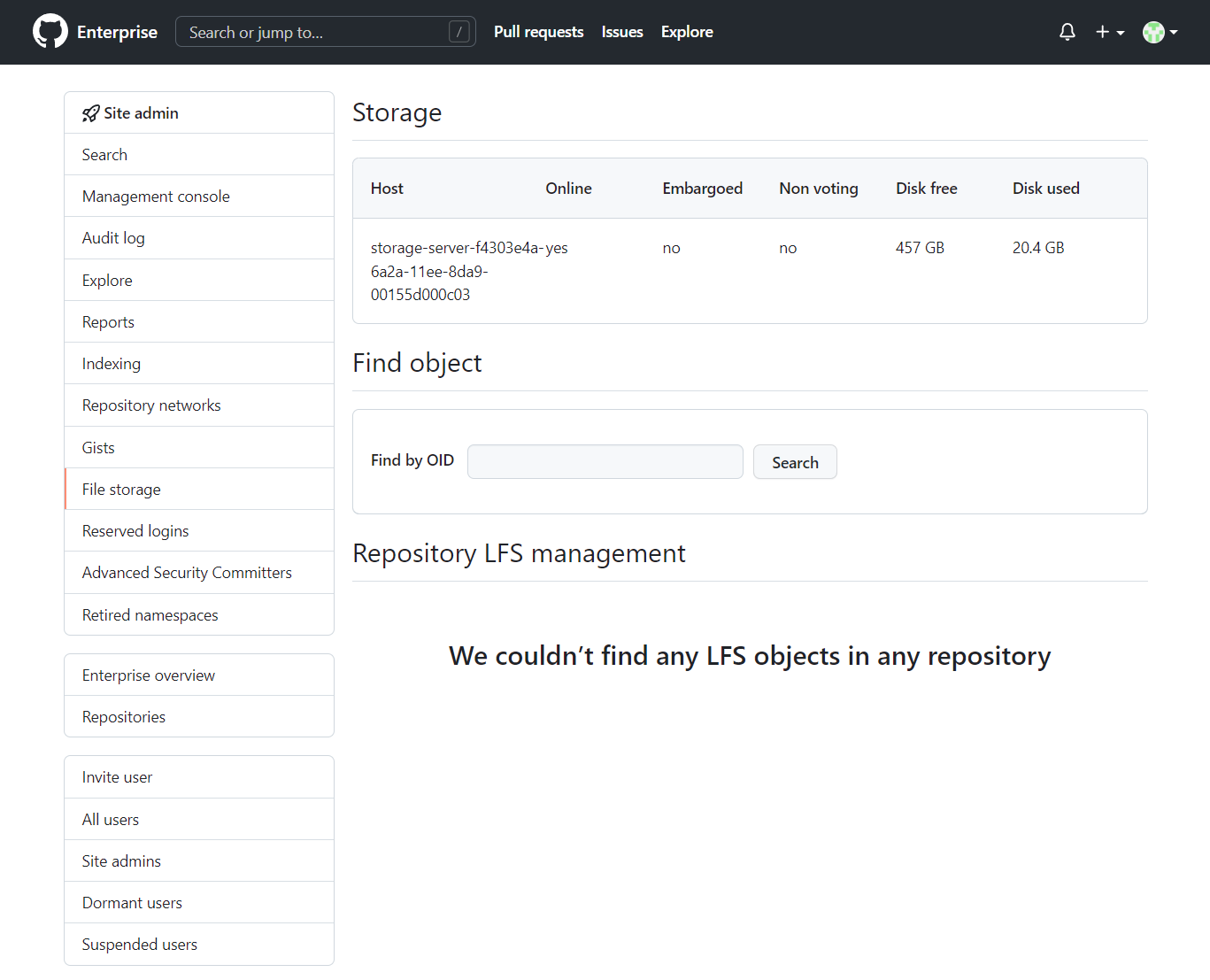

File storage:

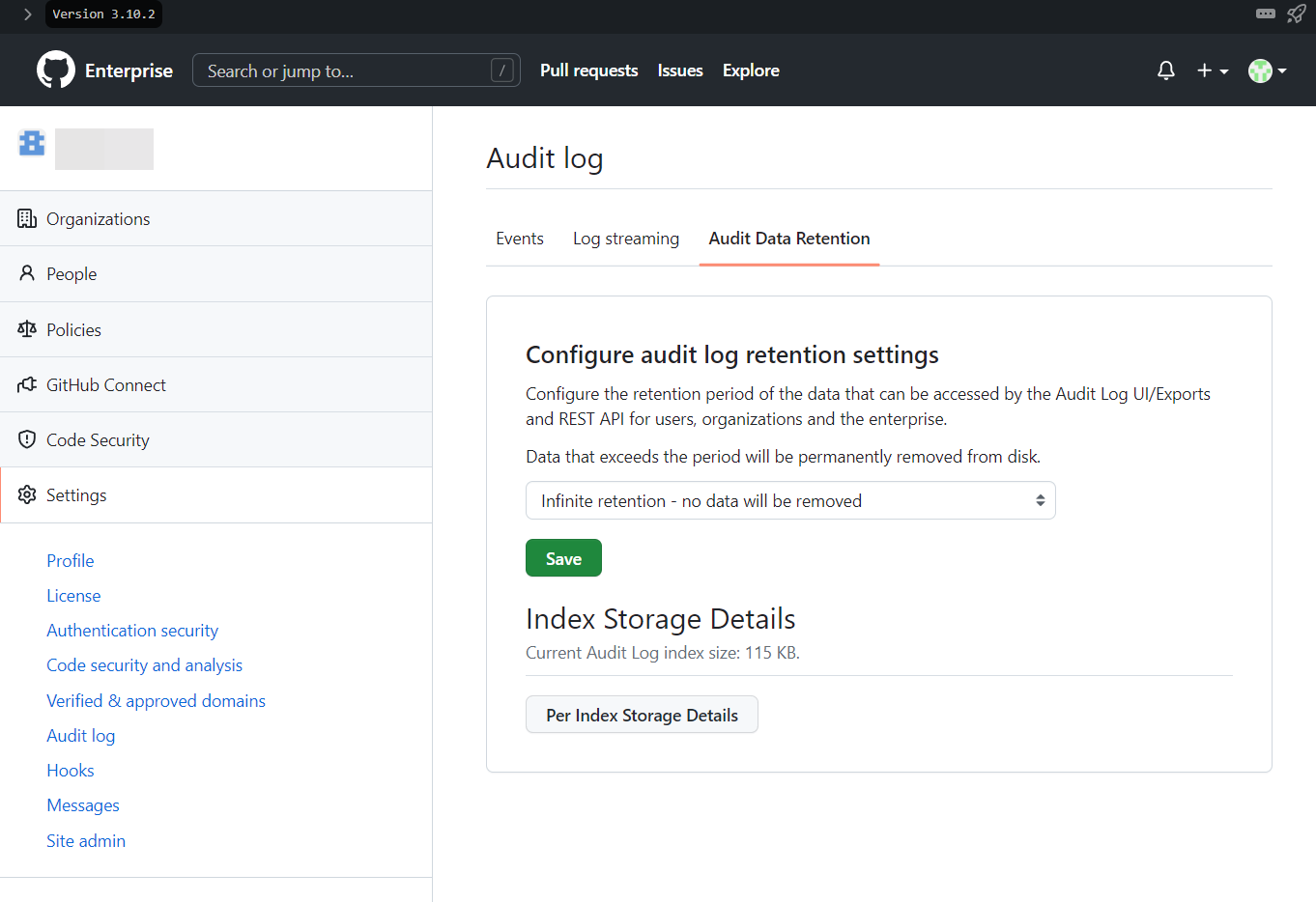

Audit log data retention period can be set for 3 months, 6 months, 9 months, 12 months, forever. I chose 6 months just like what GHEC does.

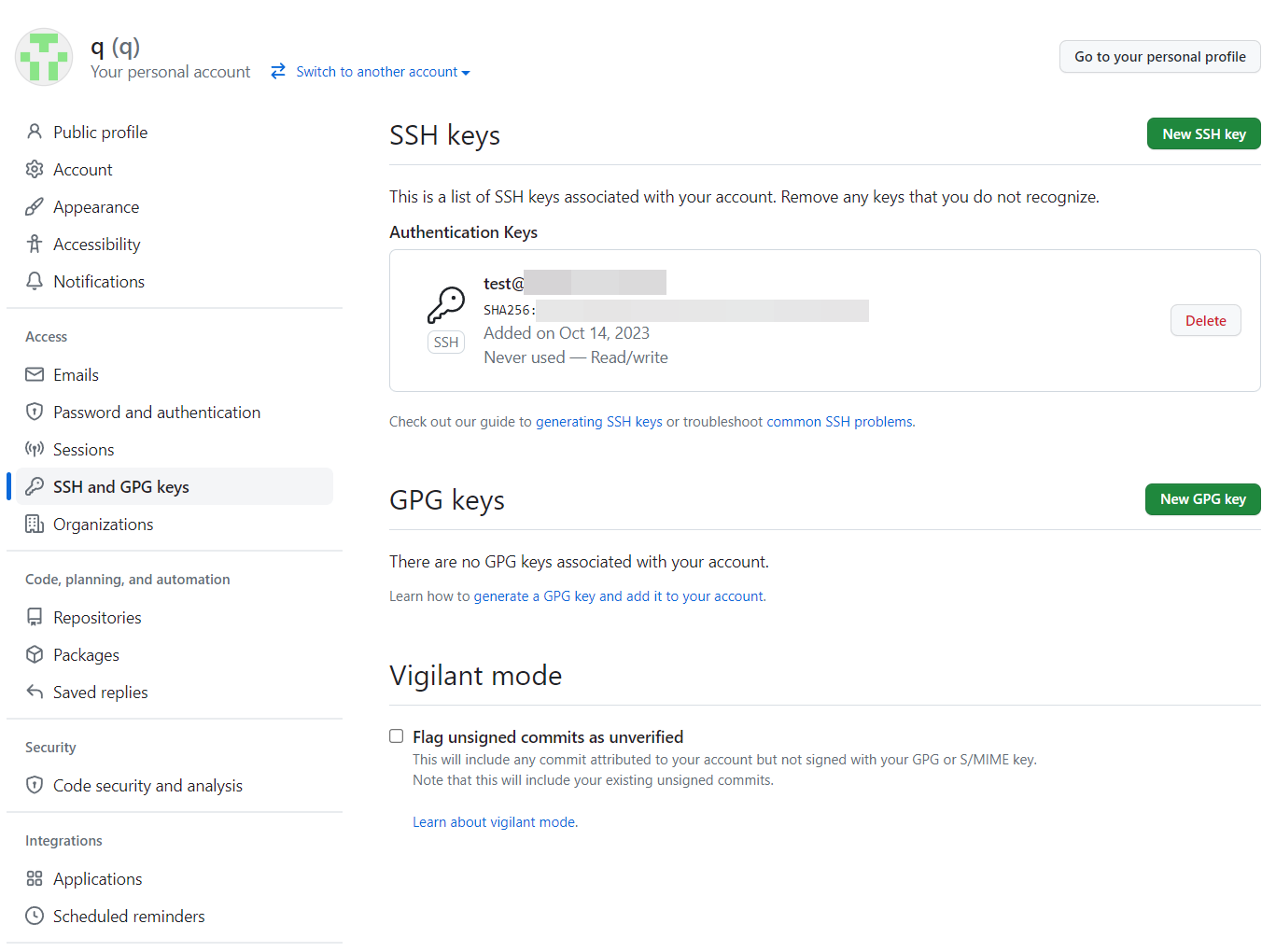

SSH key can be set for individual user

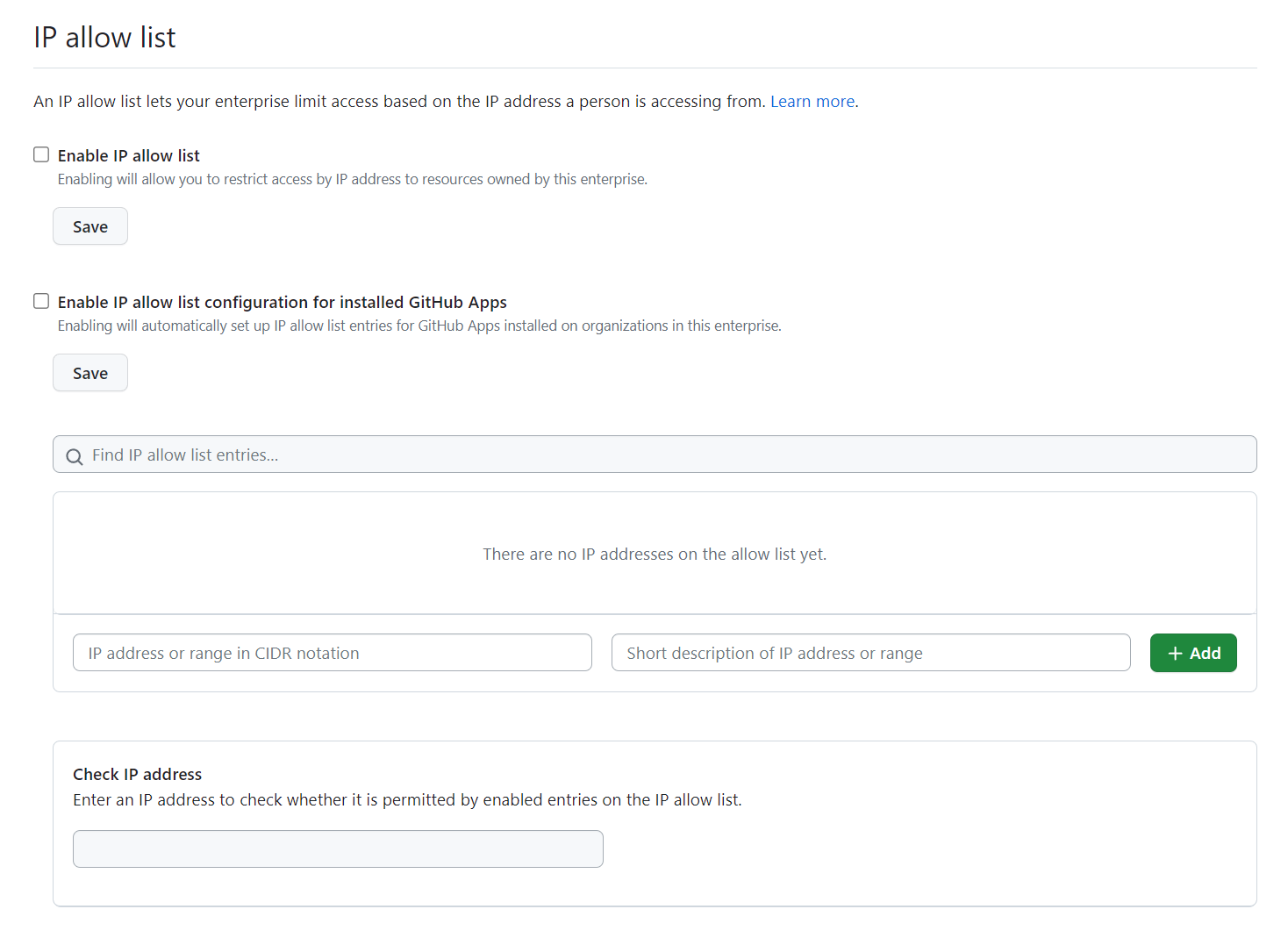

No IP allow list feature in GHES
- This feature is available in GHEC
Let’s login to the GHES instance with SSH:
1
| ssh admin@169.254.222.200 -i .\id_ghes_test -p 122
|
Basic info:
1
2
3
4
5
6
7
8
| admin@169-254-222-200:~$ uname -a
Linux 169-254-222-200 5.10.0-0.deb10.24-amd64 #1 SMP Debian 5.10.179-5~deb10u1 (2023-08-08) x86_64 GNU/Linux
admin@169-254-222-200:~$ lsb_release -a
No LSB modules are available.
Distributor ID: Debian
Description: Debian GNU/Linux 10 (buster)
Release: 10
Codename: buster
|

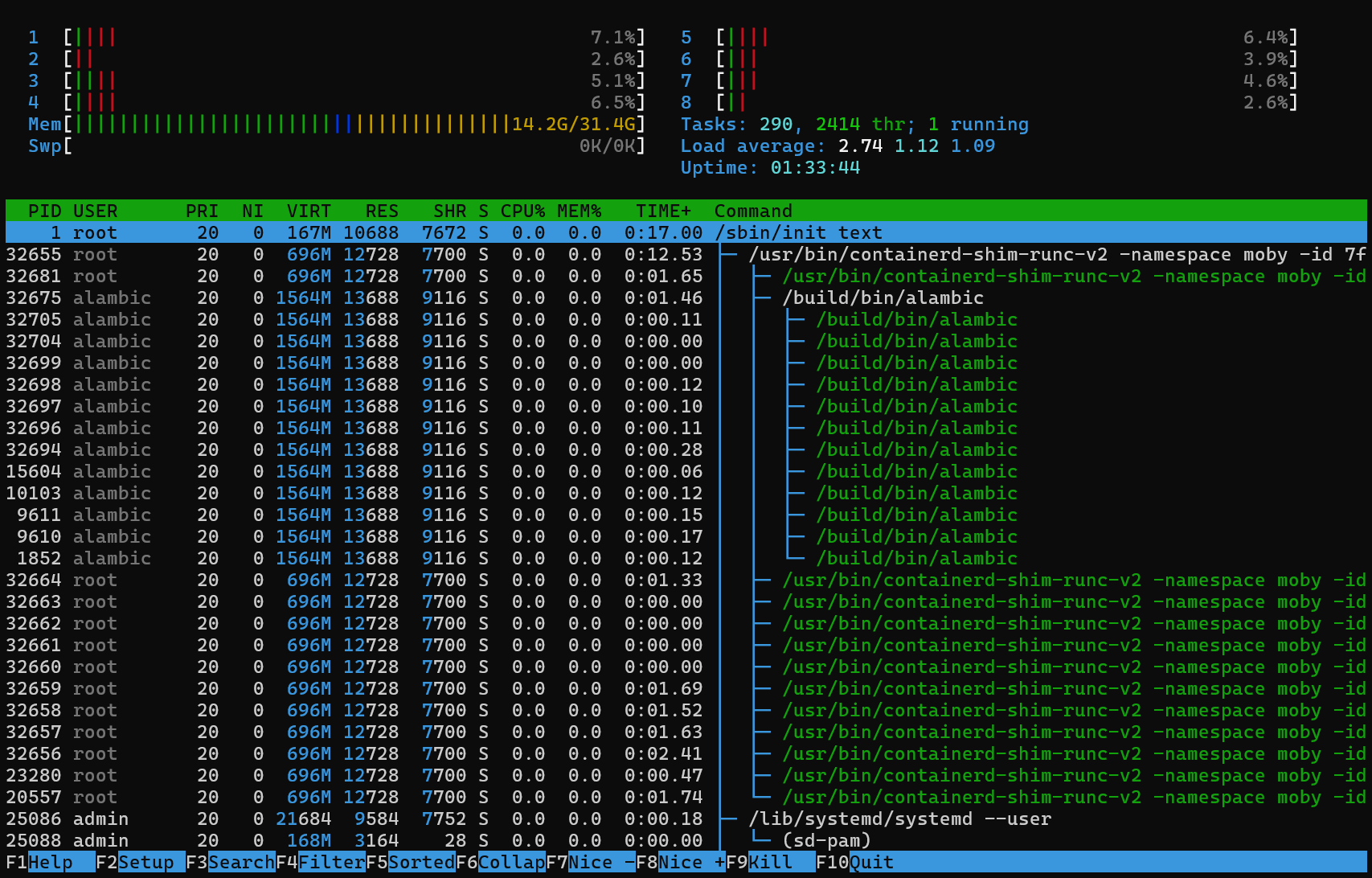

It eat up 14.2GB of memory, I haven’t set any other feature yet.
The instance has LOTS OF containers:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| admin@169-254-222-200:~$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
b67a1e03d977 viewscreen:05a21da285e02e23b1e712e8c5a2cddc3620edf6 "/bin/viewscreen" 54 minutes ago Up 54 minutes viewscreen-d5b11a11-bbd7-90a5-1dba-684e2b308a70
342a8c4817ef treelights:24ba238ab803276dab642b4088e1d7719c22aea3 "/data/bin/treelights" 54 minutes ago Up 54 minutes treelights-306fcb53-e836-4a5a-e53c-03ffdcc08f79
131368a193c8 svnbridge:9bfb9c060afad68004d212bd367144e5b915df52 "sh -c 'cd /data/svn…" 54 minutes ago Up 54 minutes svnbridge-65c316a7-f333-5950-f8e4-f999eece6f1e
38809b680f16 spokesd:20a490127e03f2272056a766a88f4b681ee0ce0a "/spokes-sweeper" 54 minutes ago Up 54 minutes spokes-sweeper-0f137886-f273-7b61-eb3a-d82b00d5789b
7adf70158d58 spokesd:20a490127e03f2272056a766a88f4b681ee0ce0a "/spokesd" 54 minutes ago Up 54 minutes spokesd-2c998e02-1453-9dd4-f3ee-3130076e0983
0441e1032907 pages:5e250d8802876d8c0b71a7d4ebafdbe69ae556c0 "/build/build-server…" 54 minutes ago Up 54 minutes pages-b1b83ad4-85ae-a684-c11b-463f0a5176c0
5137138edc9c notebooks:187dbe525005fa341e35866c22250669bca8a473 "script/server" 54 minutes ago Up 54 minutes notebooks-2272e596-a349-70b5-c36f-ea2fe2d6d5f8
a4e060311e65 mail-replies:c6df854c046c41835acab1ada2edfc295edebae1 "/bin/sh -c './bin/r…" 54 minutes ago Up 54 minutes mail-replies-568d5ff8-5e9e-f91c-c90e-1f4e63871ee2
23a66ddea82d lfs-server:e6ef2cbc7b0d6a49382601014db8bb3458b4ebce "/bin/bash -c /app/l…" 54 minutes ago Up 54 minutes lfs-server-ecb24a9f-78fc-c395-5e66-6c898a7a971a
82088bfc3945 kredz:eaade3e1ada18291e41f0caa043523fbc34a4805 "varz" 54 minutes ago Up 54 minutes kredz-varz-7c11de2d-e76c-9a84-4b27-ca3fa088cad1
22d5c9538985 kredz:eaade3e1ada18291e41f0caa043523fbc34a4805 "hydro-consumer" 54 minutes ago Up 54 minutes kredz-hydro-consumer-ef41e96a-94c1-bcec-fc1a-8ea3cd3f803a
4e273a053b21 kredz:eaade3e1ada18291e41f0caa043523fbc34a4805 "credz" 54 minutes ago Up 54 minutes kredz-a00215cb-6ce6-f30c-a90f-5e2991f3963d
e66ea8cbd55d hookshot-go:3468dd8c194db51eb0c2797daded63fda07985bd "/hookshot-go" 55 minutes ago Up 55 minutes hookshot-go-ad8de242-a6f7-45bf-022b-42930ff5ed8e
f5319d5f1666 ghe-grafana:0de57a4011bd66140b40d627eecddec27a1fe95f "/run.sh" 55 minutes ago Up 55 minutes grafana-5df88d53-7209-f3a7-e9cc-6b5e9187f3a7
d54cb91758ff gpgverify:6b8aa8a56ac1905865c523d239c44fef93d4bf4b "/build/bin/gpgverif…" 55 minutes ago Up 55 minutes gpgverify-8f27cff5-9131-57df-be52-859b381c0a01
9cf240fbfe40 gitrpcd:c1c1bde3dc8b80373d896146bac51228b6f651ca "/usr/bin/dumb-init …" 55 minutes ago Up 55 minutes gitrpcd-fd18b860-3304-4ed7-6855-2963466030af
abc24bca5b90 github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 56 minutes ago Up 56 minutes github-unicorn-209d5728-b169-08cb-e000-13619d8476f0
fed3bc28d291 github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 56 minutes ago Up 56 minutes github-timerd-5c6d54dc-1092-b51e-ff9c-553a5b28487d
3c5014297fc2 github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 56 minutes ago Up 56 minutes github-stream-processors-98d53c61-6eed-87d0-029d-028f36e1b71c
e8d7946558b2 github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 56 minutes ago Up 56 minutes github-resqued-9855932c-eb2b-eff5-b28a-4a9b79ceced8
dd078ee15a13 github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 57 minutes ago Up 57 minutes github-gitauth-d60677ba-b0a1-8ff2-5deb-2e486a1246df
4c61fcc10d7b github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" 57 minutes ago Up 57 minutes github-ernicorn-24b11066-73bc-35d6-da55-afa721ae6e50
711d00d6bcc0 driftwood:4399a867da16140954cff65b9e8f0bec0129f352 "/driftwood-ghes-str…" 57 minutes ago Up 57 minutes driftwood-1ebd0f09-aaf7-4bbd-867c-c83581a43b0b
d2a6e34a4112 codeload:58fd33f376183d7f4069c888981e8b109459e093 "./codeload --config…" 57 minutes ago Up 57 minutes codeload-75746569-b4db-4f8e-8059-862f9c64001f
856e4aa6f57c babeld:6732d28259671ce18e46eaa967bdb52a7c2758cc "/bin/bash -c /etc/b…" 57 minutes ago Up 57 minutes babeld-2ca1d53e-9126-e2cf-3e43-8efcadf8d528
ea3719fab0b2 babeld2hydro:3df1dc4489214c8a2be5694f98d72a2a6057706c "/app/babeld2hydro" 57 minutes ago Up 57 minutes babeld2hydro-cb51ccf7-8dc0-9d3a-6f1d-d45f5e9e5d3c
7aa0e53fd73c authzd:e3caea835dc7e5470280a848531eafa58d6e2e15 "/authzd" 57 minutes ago Up 57 minutes authzd-be2345eb-250e-b73e-87f3-1845b8725834
271e845c2ff7 authnd:3ce612f06820074fdbd007f0588e569405087906 "/app/bin/authnd" 58 minutes ago Up 58 minutes authnd-44d71086-cd06-8782-8c4a-b83a12a86929
b9854e770c46 alive:46e1d36744991c81d503b7116b3707de1da166f6 "/go/bin/alive-local" 58 minutes ago Up 58 minutes alive-0537c472-1dc7-35df-b8ed-9a5365309b8d
66d98fdbac8c kafka-lite:6e8987e3d0054cfe5a747b5c722a0f2ad7ad64d5 "/kafka-lite --log-f…" About an hour ago Up About an hour kafka-lite-cc70cce5-7f41-1499-0029-c125be516985
0104da7a0ab7 aqueduct-lite:5bacd35a04565f339348a9de9ee4fe2c0b4b0918 "bin/aqueduct-lite -…" About an hour ago Up About an hour aqueduct-lite-edb25c36-6543-8fd1-5c8e-e89b4e7518bb
a616b54b73a2 haproxy:82541810fee8914b6a7c64a86ad971dc6fa037da "/usr/local/bin/entr…" About an hour ago Up About an hour haproxy-cluster-proxy-1e08ac14-726c-c294-28da-d568ea4e64f2
508c98d754fc spokesd:20a490127e03f2272056a766a88f4b681ee0ce0a "/usr/bin/dumb-init …" About an hour ago Up About an hour spokesctl-7c547002-9110-f46e-50c6-e15991d05c02
999b218465e7 redis-container:0c18b5d5f2bc6f4dbea199ec0e89437df9330606 "docker-entrypoint.s…" About an hour ago Up About an hour redis-bce557dd-4cd5-9e72-8d23-47180ea83346
ec24e72202e9 ghe-nginx:990760e1d8f278d133826d0b34ed0816e65cc8b1 "/usr/bin/dumb-init …" About an hour ago Up About an hour nginx-81dd14c3-dfcd-cd40-08c0-fe302a4fbffa
703221f65efc ghe-mysql-container:591841296a64f8eac0ee54506b03025225d5f998 "/entrypoint.sh mysq…" About an hour ago Up About an hour mysql-33421cd2-b905-c691-9032-101612fc1e27
d0526a4372b3 memcached:1aaaa7957181c1cae709cc83aac6a6d647caef53 "memcached -p 11211 …" About an hour ago Up About an hour (healthy) memcached-dd931c40-3970-8e84-ba77-1b31537aeafb
d0bbe5b9e4d4 http2hydro:52759cc004e74aeb2c643023cc5bf45c922bcef7 "/bin/http2hydro" About an hour ago Up About an hour http2hydro-92cd5244-d507-0f1d-5fe8-e5cd16c81022
363e27a36478 haproxy:82541810fee8914b6a7c64a86ad971dc6fa037da "/usr/local/bin/entr…" About an hour ago Up About an hour haproxy-frontend-69ca04a8-4a0c-a112-0736-5c4ae08e2121
72e971a518c4 haproxy:82541810fee8914b6a7c64a86ad971dc6fa037da "/usr/local/bin/entr…" About an hour ago Up About an hour haproxy-data-proxy-7e483b28-2395-02d0-ef89-483bf9736125
a8e3b8523988 ghe-graphite-web:b30e4c827eff3d5fd22336842b196e2f18b32af9 "/entrypoint.sh --py…" About an hour ago Up About an hour graphite-web-36c0b024-3bde-8cb9-ad34-e622eba60d1e
62ef9d2dce60 gitmon:3efdfa2414b2d51dcb3d6ad822da7172307263c1 "/build/bin/gitmon -…" About an hour ago Up About an hour governor-8cf53f5d-5306-6821-fa68-475cd5b51657
3fa700fd0c2c github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" About an hour ago Up About an hour git-daemon-d85f100b-ec9d-1d6c-8782-c213015e5d67
f2b278cbc6ef github:d7984739735cbb6a2f8281a1519db38487840cda "/usr/bin/dumb-init …" About an hour ago Up About an hour github-env-1763e5b3-da55-0657-dc64-aeeaeb3ff822
d24c9b2f476b elasticsearch-container:ff4e8a8a1dfcc086ab16ed159f4e9270f42bb14a "elasticsearch -Edef…" About an hour ago Up About an hour elasticsearch-c4cab4a3-00e3-d81e-19f3-7df55407c9a7
da55ca10990e consul-template:2ccb7ecaca5ee3f797b56777376b116c2d7250c4 "/entrypoint.sh -con…" About an hour ago Up About an hour consul-template-003180e7-3830-21bf-c68b-ea93a251aa0b
7f132cbe4122 alambic:4453ec114da1ad62425911118ae03a43bafc9087 "/build/bin/alambic" About an hour ago Up About an hour alambic-39c6915c-7e3b-83ce-317c-288819fe6302
|
